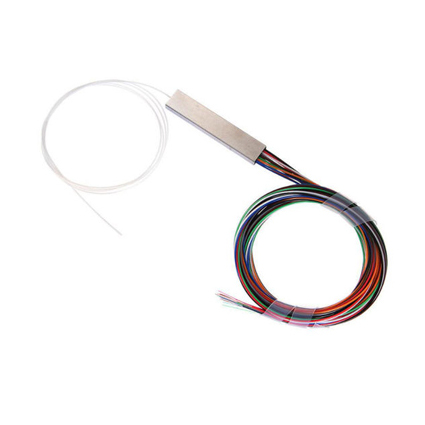

A 1*8optical splitter is an asymmetric passive component that divides an incoming fiber optic signal, sending 12.5% of the optical power through every tap port. It is commonly used for network monitoring, fault detection, and signal sampling. Read more
| Specifications | Descriptions |
|---|---|
| Optical performance | Operating Wavelength: 1260 nm – 1650 nm Insertion Loss: \(\le 10.5\) dB to \(10.8\) dB (varies by manufacturer and specific model) Return Loss: \(\ge 55\) dB Uniformity: \(\le 1.0\) dB Polarization Dependent Loss (PDL): \(\le 0.3\) dB Directivity: \(\ge 55\) dB |
| Environmental and physical | Operating Temperature: \(-40^{\circ }C\) to \(+85^{\circ }C\) (or \(-20^{\circ }C\) to \(+70^{\circ }C\)) Storage Temperature: \(-40^{\circ }C\) to \(+85^{\circ }C\) Connector Type: Typically SC/APC Fiber Type: Often G.657A1 single-mode fibe |
| Approvals and certifications | Telcordia GR-1221 and GR-1209: Meets industry standards for reliability ISO-9001 and TUV Certified: Indicates a certified manufacturing process RoHS Compliant: Restricts the use of hazardous materials |
