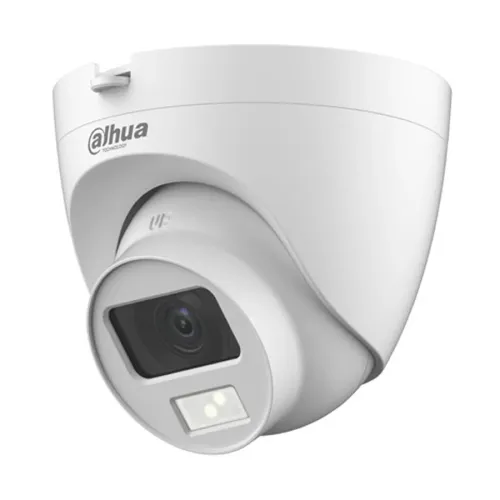

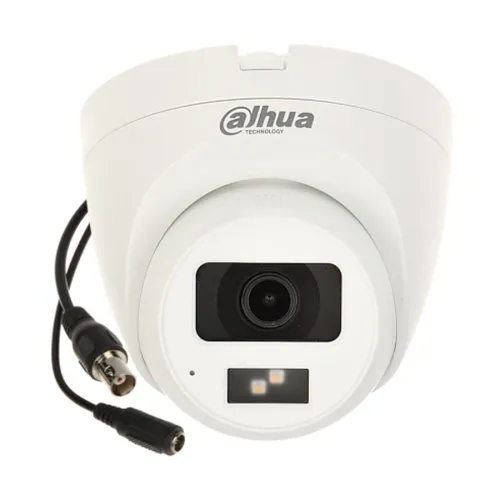

The DH-HAC-HDW1209CLQP-IL-A-LEDcamera's 2MP sensor records sharp and detailed 1080p video at up to 30 frames per second, ensuring that every moment is caught precisely. This camera's highlight feature is its 24/7 color imaging capacity, which, when paired with its strong LED lighting that reaches up to 20 meters, offers bright and accurate color film even in low light or at night.
Specification of the Dahua DH-HAC-HDW1209CLQP 2MP Dome Camera
| General | ||
| Casing | Inner core: metal+plastic; cover: plastic; pedestal: plastic | |
| Dimensions | 97mm×85.8mm | |
| Weight | 0.22Kg | |
| Operating Conditions | -40°C to +60°C (-40°F to 140°F);<95% (non-condensation) | |
| Storage Conditions | -40°C to +60°C (-40°F to 140°F);<95% (non-condensation) | |
| Power Supply | 12V ±30% DC | |
| Power Consumption | Max. 3W (12V DC, white light on) | |
| Camera | ||
| Image Sensor | 1/2.8 inch 2.16 Mega Pixels CMOS | |
| Effective Pixels | 1920 (H)×1080 (V), 2MP | |
| Electronic Shutter Speed | PAL:1/25s–1/100000s NTSC:1/30s–1/100000s |
|
| Minimum Illumination | 0.005Lux/F1.6, 30IRE, 0Lux white Light on | |
| IR Distance | 20 m | |
| IR On/Off Control | Auto; Manual | |
| Lens | ||
| Lens Type | Fixed-focal | |
| Mount Type | M12 | |
| Focal Length | 2.8m | |
| Max Aperture | F1.6 | |
| Angle of View | 2.8mm: 126.2°×106.0°×56.5° (diagonalxhorizontalxvertical) 3.6mm: 103.6°x86.9°x46.3°(diagonalxhorizontalxvertical) |
|
| Focus Control | Fixed iris | |
| Close Focus Distance | 2.8mm: 0.6m (1.97ft) 3.6mm: 1.2m (3.94ft) |
|
| Video | ||
| Resolution | 1920×1080 | |
| Frame Rate | Max. 30fps@1080P | |
| Video Output | CVI/TVI/AHD/CVBS by one BNC | |
| Gain Control | Auto; Manual | |
| Noise Reduction | 2D NR | |
| Special Features | ||
| Features | BLC: BLC/HLC/WDR WDR DWDR White Balance: Auto; Manual Gain Control: Auto; Manual Noise Reduction: 2D NR Smart Light: Yes Electronic Defog: Yes | |
