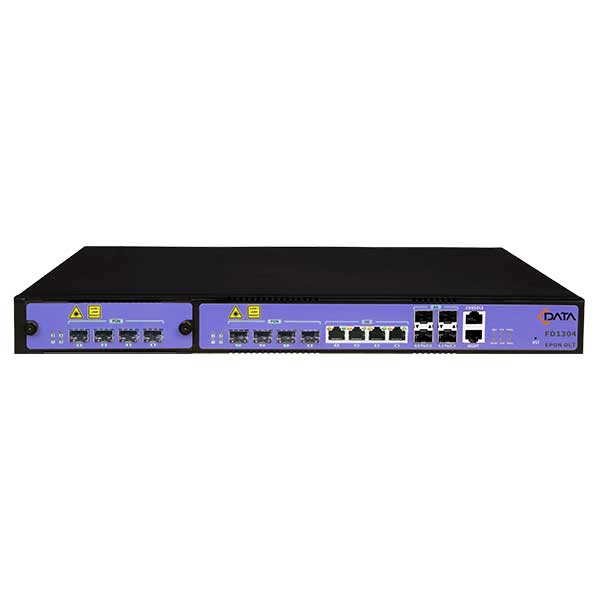

The C-Data FD1304S-B1-PDA0 4 Ports E-PON OLT is a high-performance optical line terminal designed for stable and scalable EPON networking. Built in a 1U 19-inch standard rack box with dimensions of 306 × 266 × 44 mm and weighing 2.6 kg, this compact device ensures easy deployment in data centers and ISP networks. The C-Data FD1304S-B1-PDA0 supports EPON (IEEE 802.3ah) technology with 4 PON ports, each delivering a 1:64 splitting ratio and a 20KM transmission distance, making it ideal for large-scale fiber access projects. For uplink performance, it integrates 4 × 10/100/1000M auto-negotiation Ethernet ports and 4 × 10G SFP+ interfaces, powered by a 98G backplane bandwidth for efficient data transfer. The C-Data FD1304S-B1-PDA0 4 Ports E-PON OLT is equipped with a 100/1000BASE-Tx out-band Ethernet management port and a CONSOLE local port, ensuring flexible management options. Its PON ports provide a symmetrical 1.25Gbps rate using SC/UPC interfaces over 9/125μm single-mode fiber, with optical specifications including a 1490nm forwarding wavelength, 1310nm receiving wavelength, PX20+ transmission power (2~5.5 dBm), -28dBm receiving sensitivity, and -8dBm saturation power. Power supply flexibility is enhanced with support for 100V ~ 240V AC (47–63Hz) or -36V ~ -72V DC. Built for durability, the C-Data FD1304S-B1-PDA0 4 Ports E-PON OLT operates reliably in temperatures from -15℃ to 50℃, stores safely from -40℃ to 85℃, and functions in 5–90% non-condensing humidity, making it an excellent choice for ISPs and enterprises deploying next-generation EPON networks.
In Bangladesh, you can get original C-Data FD1304S-B1-PDA0 4 Ports E-PON OLT From Star Tech. We have a large collection of latest OLT to purchase. Order Online Or Visit your Nearest Star Tech Shop to get yours at lowest price. The C-Data FD1304S-B1-PDA0 4 Ports E-PON OLT comes with 2 year warranty.
| Category | Specification |
|---|---|
| Item | FD1304E-B1 |
| Mechanics | |
| Rack Type | 1U 19-inch standard box |
| Size | 440 × 293 × 44 mm |
| Weight | 4.0 kg |
| Hardware | |
| Uplink Port | 4 × 10/100/1000M auto-negotiation Ethernet ports (COMBO) |
| 10-Gigabit | 4 × SFP+ interfaces |
| PON Port Quantity | 4 / 8 |
| Physical Interface | SFP |
| Interface Type | EPON: IEEE 802.3ah |
| Max Splitting Ratio | EPON: 1:64 |
| Management Port | 1 × 100/1000BASE-Tx out-band Ethernet port 1 × CONSOLE local management port |
| PON Port Attributes | |
| Transmission Distance | 20KM |
| Port Rate | EPON: Symmetrical 1.25Gbps |
| Wavelength | Forwarding: 1490nm Receiving: 1310nm |
| Interface Type | SC/UPC |
| Fiber Type | 9/125μm SMF (Single Mode Fiber) |
| Receiving Sensitivity | EPON: -27dBm |
| Saturation Power | EPON: -6dBm |
| Network & Management | |
| Management Methods | Support CLI, SNMP, TELNET, SSH, WEB |
| Business Capabilities | – Device log, device upgrade, device management, condition monitoring, configuration management, user management – Layer 2: Port management, VLAN, RSTP, IGMP, ACL, QoS – PON: OLT authentication, DBA template, service template, line template – Layer 3: Static routing, DHCP-relay, VLANIF configuration |
| Backplane Bandwidth | 108G |
| Power Supply | |
| AC | 100V ~ 240V, 47/63Hz |
| DC | -40V ~ -72V |
| BBU (Backup Battery Unit) | DC: 11V ~ 14V Function: Switches to backup power during outage, auto-resumes when regular power returns |
| Maximum Power | 78W |
| Environment | |
| Working Temperature | -15 ~ 50℃ |
| Storage Temperature | -40 ~ 85℃ |
| Humidity | 5 ~ 90% (Non-condensing) |
