Key Features • Adopt the new Vstar GUI , easy to operate and run smoothly • Support intelligent coding VSMart, greatly reducing storage space • Improved compatibility for hard disks, and up to 10TB • Support Intelligent Detection and Human Detection Read more
| Specifications | Descriptions |
|---|---|

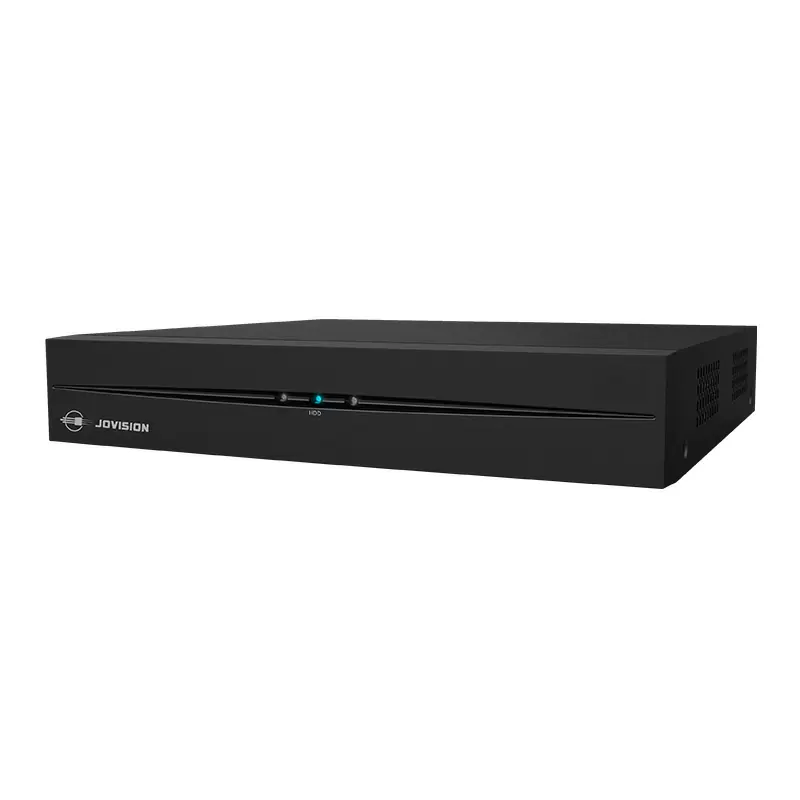

| Model | JVS-ND6606-HD |
| Video & Audio | |
| IP Camera Input | 6 Channel |
| Audio Input/ Output | 1 Channel 3.5mm Jack Output,6 Channel Audio output through HDMI |
| Bandwidth I/O | 50Mbps/40Mbps |
| Display | |
| Interface | 1 RJ45 Port (10/100Mbps) |
| Resolution | 6CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p |
| Max Decoding | 6CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p @25fps |
| Multi-Screen Display | 1/ 4/ 5/ 6 |
| OSD | Camera Name & Time, Recording, Alarm Detecting, Remote connection, Volume, Channel Number |
| Recording | |
| Compression | H.265/H.264 |
| Record Mode | Manual, Schedule, Motion Detection |
| Video Detection & Alarm | Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer |
| Video Detection | Motion Detection, No Video Detection |
| Playback & Backup | |
| Sync Playback | 1CH 5.0MP, 1CH 4.0MP, 1CH 3.0MP, 2CH 1080p |
| Search Mode | Channel Number / Recording Type / Date |
| Playback Function | Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward ,Slow, Step, Full Screen, Snap, Sound On/Off, Zoom |
| Backup Mode | FAT32 USB Device/ Network |
| Network & Interfaces | |
| Network Function | TCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE |
| Smart Phone | Support iOS, Android App |
| Interoperability | ONVIF 2.4 |
| Storage | |
| SATA | 1 SATA Interfaces |
| Capacity | Up to 10TB |
| USB | 2x USB |
| General | |
| Power Supply | DC 12V |
| Consumption | ≤10W (Without HDD) |
| Working Temperature | -10°C ~ 55°C |
| Working Humidity | 10% ~ 90% |
| Dimensions | 255x41x195mm |
| Weight | ≤1.0kg (Without HDD) |
