Features Light's On When People Come, Light's Off When People Leave Double Wick, Two warm light, Two infrared Support Humanoid Detection Support Region Intrusion Detection, Line Crossing Detection, Video Tampering Detection, Defocus Detection Equipped With unique VQC (Video Quality Catalyst) Technology Built-in MIC and Speaker Read more

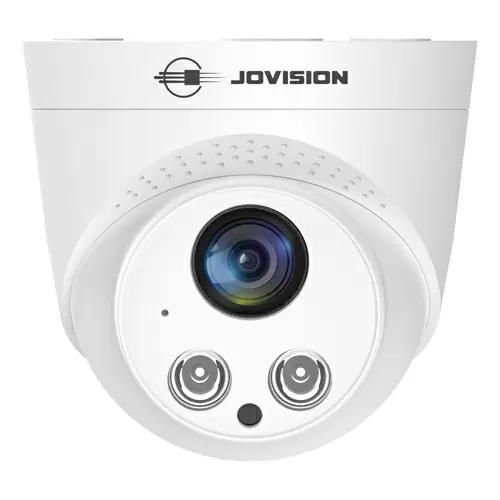

Features of the Jovision JVS-N936-MDL 3MP Dome Full-Color Audio IP Camera
| Specifications | Descriptions |
|---|---|
| Video | |
| Image Sensor | 1/2.8" CMOS Sensor |
| Max Resolution | 2304x1296 |
| Effective Pixels | 3.0MP |
| Compression Standard | H.265/H.264 |
| Frame Rate | 25fps |
| Bit Rate | 128Kbps~4096Kbps |
| SNR (dB) | 52dB |
| Min. Illumination | 0Lux (IR ON) |
| Lens | 2.8mm(M12) |
| FOV | H:100.4°, V:53.9°, D:118.6° |
| Lights | 2 Warm Light LEDs + 2 IR LEDs |
| IR Distance | IR: Up to 30 MetersWarm Light: Up to 30 Meters |
| Function | |
| Exposure Control | Auto |
| White Balance | Auto |
| Gain Controll | Auto |
| Image Enhancement | 3D DNR |
| Advanced OSD | Support OSD large font function, OSD flashing on alarm, OSD and time to set the position separately |
| Motion Detection | Support Humanoid Detection |
| Image Setting | Flip, Saturation, Brightness, Contrast, Sharpness |
| Day and night function | Day and night automatic switching |
| Privacy Mask | Support up to 8 areas |
| Intelligent Analysis | Region Intrusion Detection, Line Crossing Detection, Video Tampering Detection, Defocus Detection |
| Alarm Method | Email Alarm, Client Alarm |
| Remote Operation | System, Audio and video, Image, Alarm, Network management |
| Expansion Interface | Built-in MIC and Speaker |
| Network | |
| Ethernet | 10M / 100M Ethernet ,1 RJ45 |
| 10M / 100M Ethernet ,1 RJ45 | 10M / 100M Ethernet ,1 RJ45 |
| Stream | 2x Streams |
| Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| ONVIF | Standard ONVIF |
| Network transmission | CloudSEE 2.0, GB28181 |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| User | Up to 13 Users |
| App | Support iOS/Android |
| General | |
| Power Supply | DC12V/2A or PoE |
| Power Consumption | <3W (During day); <6W (At night) |
| Working Temperature | -30℃~60℃(-22℉~140℉) |
| Working Humidity | 10% ~ 90% Rh |
| Material | White/Plastic |
| Dimensions (WxHxD) | 100x84x100mm |
| Weight | 210g |
