Key Features Model: DS-2CE76D0T-LPFS High-quality imaging with 2 MP, 1920 × 1080 resolution 2.8 mm, 3.6 mm fixed focal lens Up to 20 m IR distance for bright night imaging High-quality audio with audio over coaxial cable, built-in mic Read more

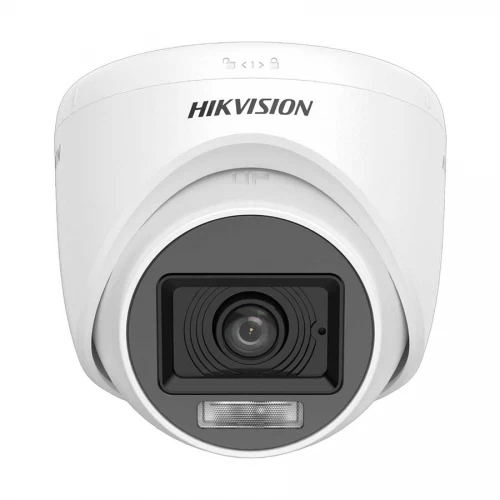

The Hikvision DS-2CE76D0T-LPFS is a high-quality indoor CC camera designed in a dome form factor, perfect for fixed surveillance. With a 2.0MP resolution and a maximum camera resolution of 1920 x 1080, this camera offers excellent imaging capabilities. Its horizontal FOV of 101 degrees, vertical FOV of 56 degrees, and diagonal FOV of 118 degrees allow for a wide field of view. Equipped with a 3.6mm lens mount and an adjustable lens range of pan: 0 to 360 degrees, tilt: 0 to 75 degrees, and rotation: 0 to 360 degrees, this camera offers flexibility in surveillance. Its 2 MP CMOS sensor and ICR day and night feature with IR/White Light enable clear imaging in low-light environments. With a digital WDR and AGC feature, this camera provides high-quality imaging with excellent detail and contrast. This camera comes with a switchable TVI/AHD/CVI/CVBS video output and a built-in mic, allowing for high-quality audio over a coaxial cable. With an IR range of up to 20 meters and a white light range of up to 20 meters, this camera provides bright night imaging. This camera supports communication with HIKVISION-C and is powered by 12VDC, with a power consumption of a max of 3.3 W. It is made of durable plastic and has a dimension of 84.6 x 85.02mm and weighs 0.156 Kg. Its other features include a minimum illumination of 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR, and image settings such as brightness, sharpness, and smart IR. Its frame rate is TVI: 1080P @ 30 fps, 1080P @ 25 fps, AHD: 1080P @ 30 fps, 1080P @ 25 fps, CVI: 1080P @ 30 fps, 1080P @ 25 fps, CVBS: PAL/NTSC, with image enhancement and white balance options available.
| Specifications | Descriptions |
|---|---|
| General | |
| Operating Conditions | -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing) |
| Power Supply | 12 VDC ± 25% |
| Camera | |
| Image Sensor | 2 MP CMOS |
| Electronic Shutter Speed | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Minimum Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| IR Distance | Up to 20 m IR distance for bright night imaging |
