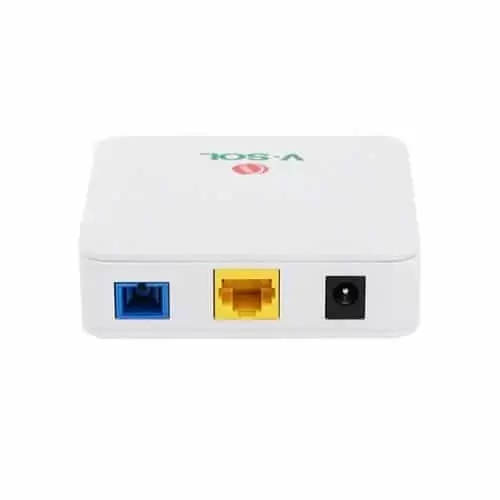

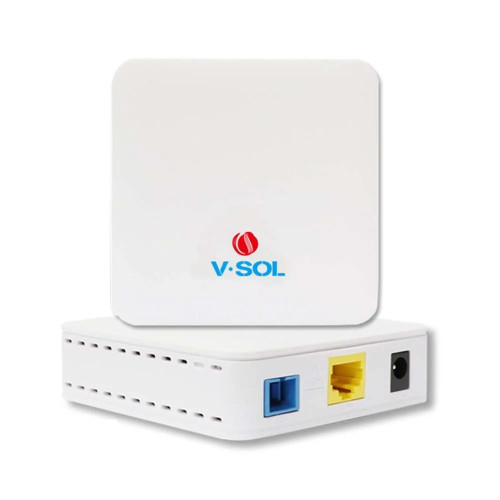

Vsol V2801SE 1GE Secure EPON ONU

The Vsol V2801SE 1GE Secure EPON ONU has a single EPON port (EPON PX20+) with an SC single mode, SC/UPC connector. It can sustain an overload optical power of -3dBm and has TX optical power ranging from 0 to +4dBm and RX sensitivity down to -27dBm. This guarantees a dependable transmission range of up to 20 kilometers at TX 1310nm and RX 1490nm wavelengths. One Gigabit Ethernet port with auto-negotiation RJ45 connectors, enabling both bridging and routing uplink modes, is part of the LAN interface. The gadget has indicators for registration (REG), link/activity (LINK/ACT), and system status (SYS). Vsol V2801SE 1GE Secure EPON ONU is made to improve both security and performance. It features hardware dying gasp protection and can identify rogue ONUs. ACL/MAC/URL filtering and DDOS defense are two of its firewall's features. Additionally, it offers DBA bandwidth, Triple Churning, several authentication methods (MAC/Loid/Mac+Loid), MPCP discovery, and automatic detection, configuration, and firmware upgrades. Dying gasp, port loop detection, and Ethernet port loss are examples of alarm features. The LAN interface can be used for port rate limitation, loop detection, flow control, and storm management when using Vsol V2801SE 1GE Secure EPON ONU. Tag mode, transparent mode, 1:1 translation mode, auto VLAN detection, and trunk mode (supporting up to 8 VLANs) are examples of VLAN capabilities. With up to 64 multicast groups, IGMP v1/v2/Snooping, and a maximum of 8 multicast VLANs, multicast support is strong. Four queues that support 802.1P, SP, and WRR are used to control quality of service (QoS). IPv4, DHCP, PPPoE, Static IP, Static Routes, and NAT are supported for Layer 3. A wide range of management solutions are available, such as CTC OAM 2.0 and 2.1, TELNET, WEB interface, and CLI. The Vsol V2801SE 1GE Secure EPON ONU runs effectively with a power source of less than or equal to 4W when powered by an external AC-DC power adapter (DC 12V, 0.5A).
