Dual Smart Illumination Support Motion Detection (Humanoid) Built-in Mic Built-in PoE IP67 Read more

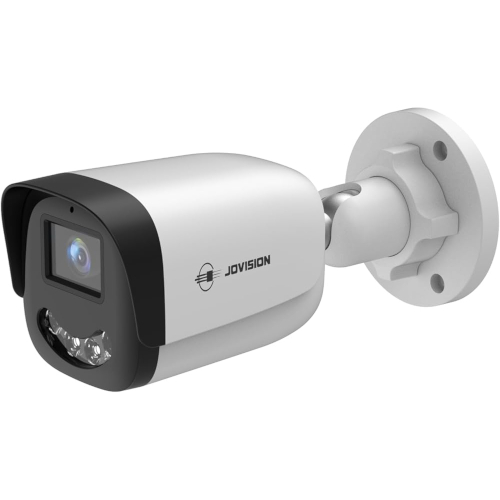

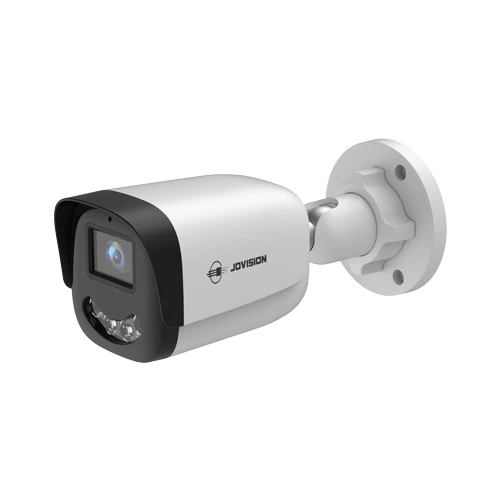

This Jovision JVS-N915-ADL is an outdoor PoE camera designed for a wide range of surveillance applications such as schools and office buildings. The camera is suitable for indoor and outdoor use. It has a built-in mic and built-in PoE feature. This camera supports iOS/Android. Also this camera supports IE8+, Chrome18+, Firefox5.0+, Safari5.02+ browsers.
| Specifications | Descriptions |
|---|---|
| Video | |
| Image Sensor | 1/2.9" CMOS Sensor |
| Max Resolution | 2304x1296 |
| Effective Pixels | 3.0MP |
| Compression Standard | H.264/H.265 |
| Framerate | 20fps |
| Bitrate | Main Stream: 256Kbps ~ 4Mbps Sub Stream: 68Kbps~1024Kbps |
| SNR (dB) | 39dB |
| Min. Illumination | 0Lux (light ON) |
| Lens | 2.8mm, 3.6mm |
| Interface Type | M12 |
| FOV | 2.8mm:H 96°, V 53°, D 110° 3.6mm:H 83.8°, V 42.7°, D 100.1° |
| Function | |
| Audio Codec | G.711U/G.711A (default) |
| Exposure Control | Auto |
| White BalanceWhite BalanceWhite BalanceWhite BalanceWhite Balance | White Balance |
| Gain Control | Auto |
| Digital 3D Noise Reduction | Support |
| OSD Information Setting | Large font OSD, OSD flashing on alarm, OSD position settings |
| SNTP | Support |
| Schedule Reboot | Support |
| Smart Defog | Support |
| Motion Detection | Support (Humanoid) |
| Image Setting | Support Saturation, Brightness, Contrast, Sharpness adjustment |
| Image Style | Standard, Soft, Transparent |
| Day and Night Function | Auto, Always Black & White, Always Color, Scheduled Color |
| Privacy Mask | Support up 8 areas |
| Electronic Screen Setting | Support maximum and minimum exposure time setting |
| Night Vision Optimization | Support |
| DWDR | Support |
| Screen Settings | Screen mirroring, Screen flipping |
| IP Adaptation | Support automatic adaptation of IP address (Optional) |
| Alarm Method | Email Alarm, Client Alarm |
| Remote Operation | System, Audio and Video, Image, Alarm, Network management |
| Audio Function | Built-in Mic |
| Network | |
| Ethernet | 10/100Mbps Ethernet |
| Stream | 2x Streams |
| Network Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| ONVIF | Standard ONVIF |
| Network Transmission | CloudSEE 2.0 |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| User | Up to 13 Users |
| App | Support iOS/Android |
| General | |
| Lights | 4 White LEDs + 4 IR LEDs |
| IR Distance | Up to 40 Meters |
| Waterproof Level | IP67 |
| Power Supply | DC12V or PoE (IEEE802.3af) |
| Power Consumption | <3W (During Day); <6W (At Night) |
| Working Temperature | -40°C ~ 60°C |
| Working Humidity | 10% ~ 90% Rh |
| Color/Material | Black and White/Plastic+Metal |
| Black and White/Plastic+Metal | 67x74x201mm |
| Weight | 250g |
| Installation Method | Wall or ceiling mount |
